TECh 7″ Digital Colour Monitor

Call for price

Product Code: SM7.4AV

Key Features

  • 7” Digital Colour Mirror Monitor
  • 4 AV Inputs (4 triggered)
  • Screen Ratio 16:9
  • PAL/NTSC auto-switching
  • Built-in speaker
  • Viewing Angle 60/70/75/75o
  • 12v-24v Operation
  • 4 Pin Aviation Connection
  • Direct Vision Standards – DVS Compliant
Read Full Description

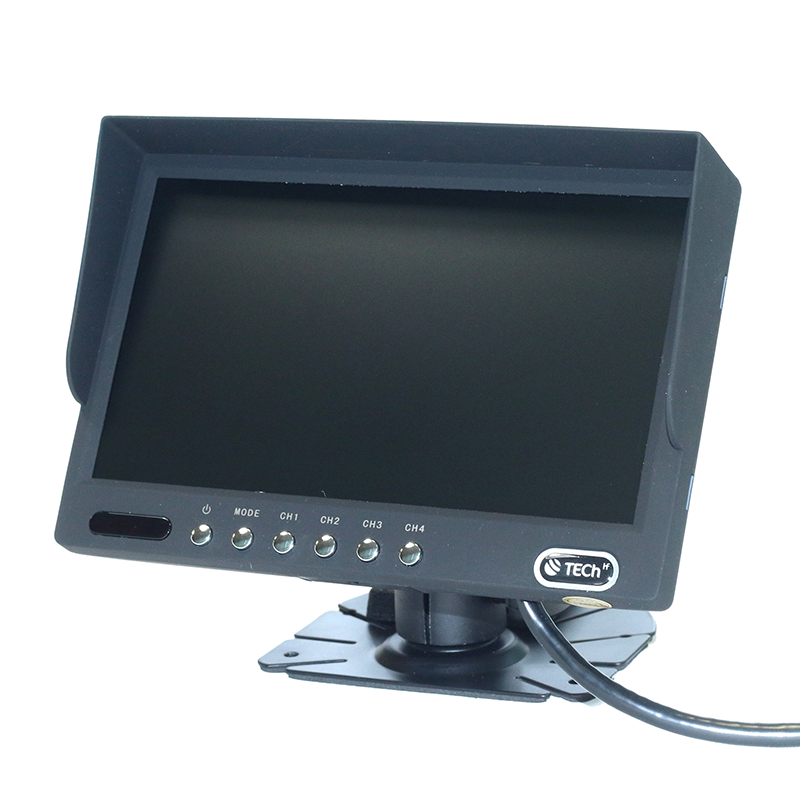

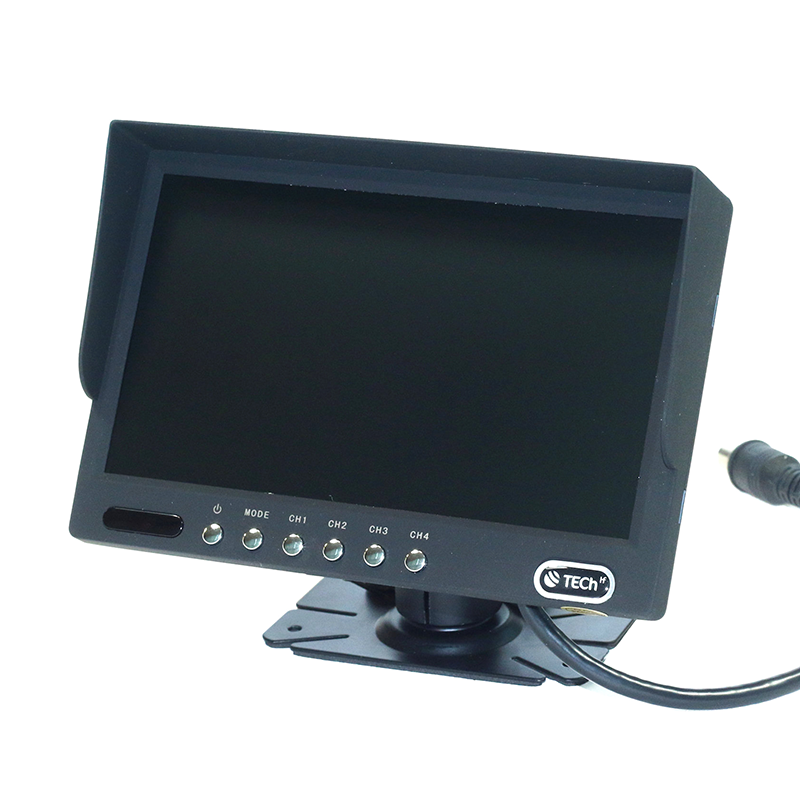

Tech 7″ Digital Colour Monitor

A 7″ dash mounting quad monitor with 4 AV inputs, all of which can be triggered for reverse, side and interior camera viewing. Suitable for use in LGV’s & HGV’s.

Direct Vision Standards – DVS

Direct Vision Standards – DVS compliant. Combine with TECh 1080P HD Adjustable Side Camera, providing a visual aid to eliminate blindspots, increasing visibility when turning.

Product Specification

Screen 7″ Digital
Screen Ratio 16:9
Resolution 800 RGB 480
Black Light Luminance LED 260cd/m2
View Angle Up 40°, Down 15°, Left 65°, Right 65°
System PAL/NTSC (Automatic)
OSD Control Brightness, Contrast, Colour, Volume, Mode, Turnover
Language English, German, French, Spanish, Portuguese, Italian, Dutch, Simplified Chinese
Key Control On Screen Display

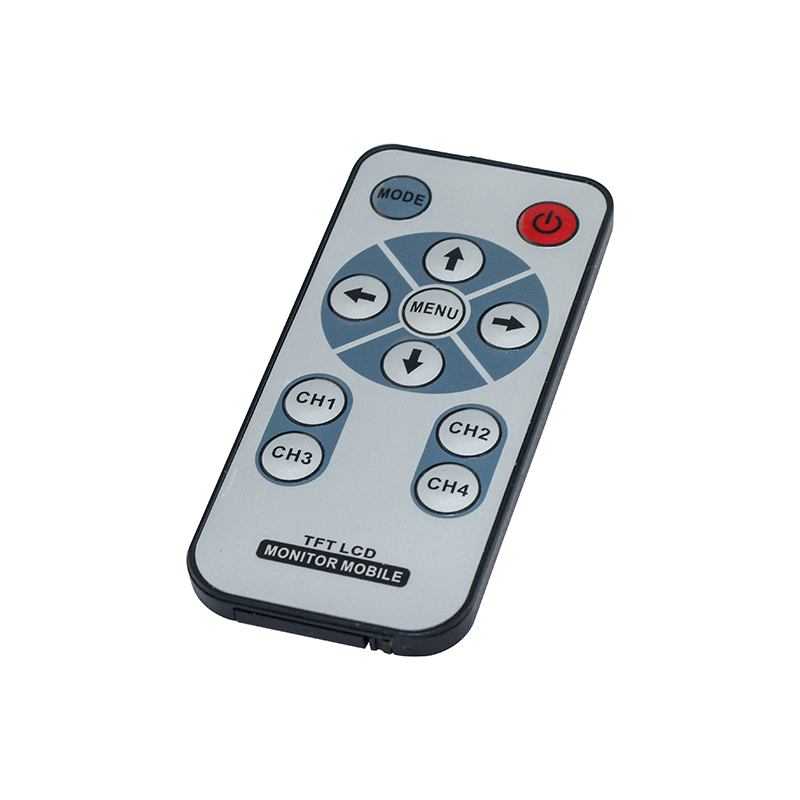

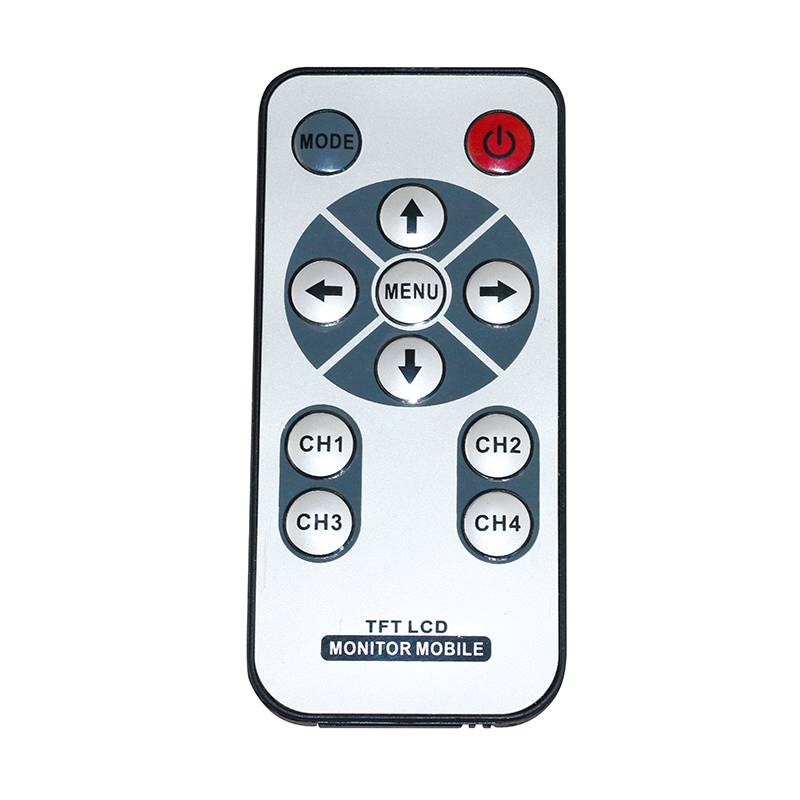

Remote Control Yes
AV Inputs 4 Way External CVBS input, 4 Way Audio input
Trigger Four Triggers
Audio Built-in Speaker
Power 12-24v
Connector 4 Pin Aviation
