6″ Digital Colour Monitor

Call for price

Product Code: SM6.2AV

Key Features

• 6” Digital Colour Mirror Monitor
• 2 AV Inputs (1 triggered)
• Screen Ratio 16:9
• PAL/NTSC auto switching
• Built-in speaker
• Viewing Angle 40/15/65/65o
• 12v-24v Operation
• 4 Pin Aviation Connection

Read Full Description

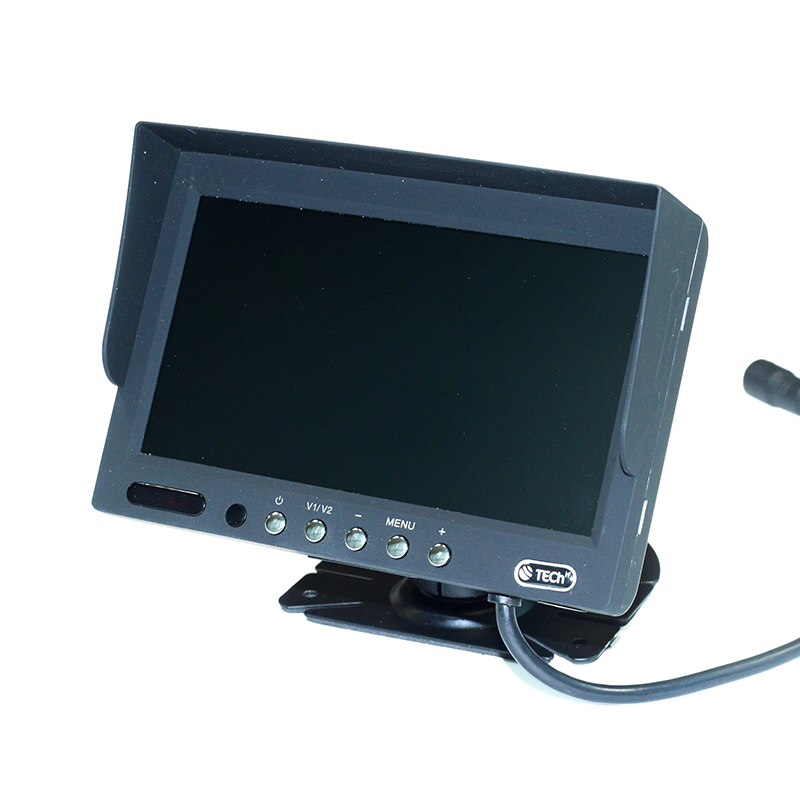

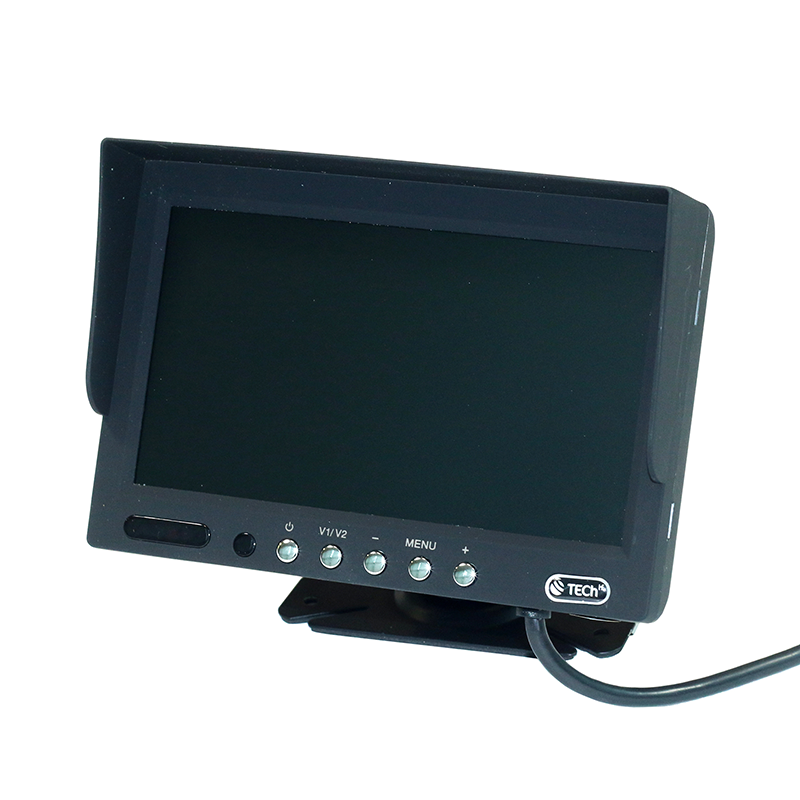

Tech 6″ Digital Colour Monitor

A 6″ dash monitor with 2 AV inputs one of which can be triggered for reverse or side camera viewing. Suitable for use in LGV’s & HGV’s.

Product Specification

Screen 6″ Digital
Screen Ratio 16:9
Resolution 800 RGB 480
Back Light Luminance LED 260 cd/m2
View Angle Up 40°, Down 15°, Left 65°, Right 65°
System PAL/NTSC (Automatic)
OSD Control Brightness, Contrast, Colour, Volume, Mode, Turnover
Language English, German, French, Spanish, Portuguese, Italian, Dutch, Simplified Chinese
Key Control On Screen Display

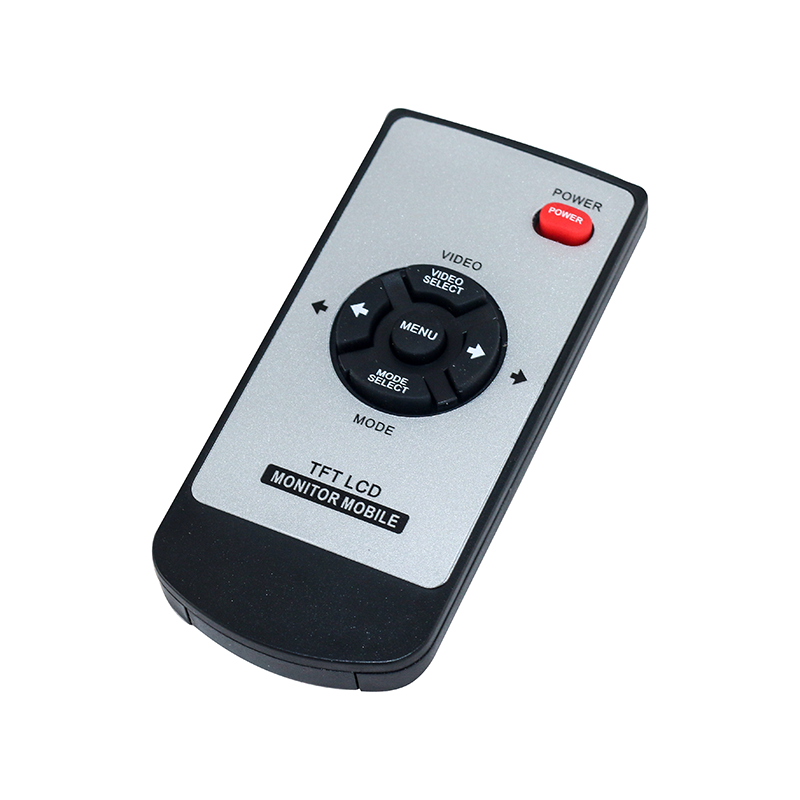

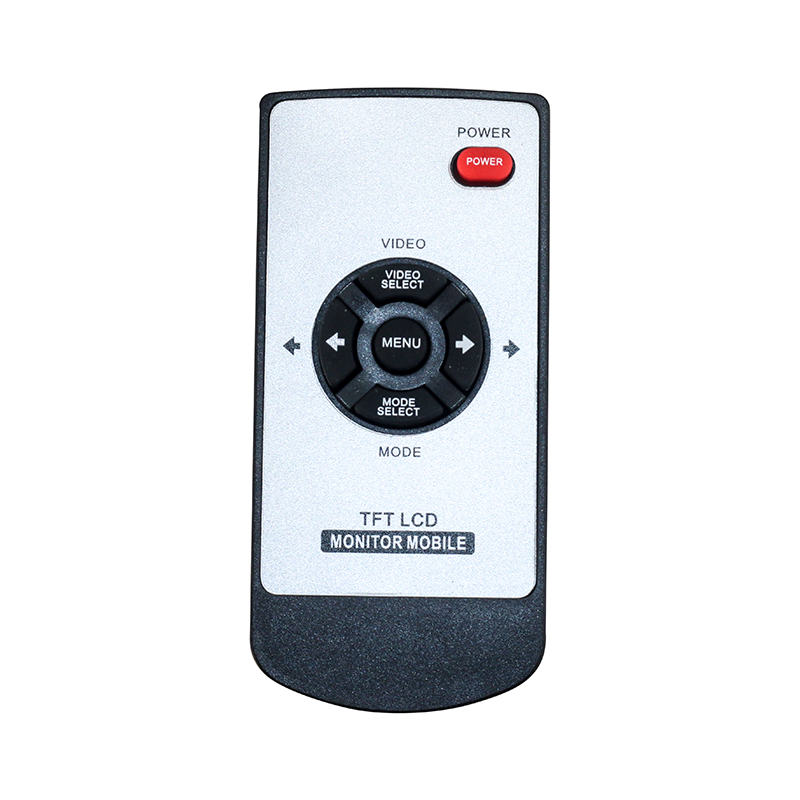

Remote Control Yes
AV Inputs 2 Way External CVBS input, 2 Way Audio Input
Trigger Single Trigger
Audio Built-in Speaker
Power 12-24v
Connector 4 Pin Aviation

Product Code:  SM6.2AV
