TECh Sensor System

TECh Sensor System

Call for price

Product Code: SEN-CS3000
  • 3 x IP68 Corner mount sensors
  • 2 level proximity sensitivity
  • Graduated audible warning
  • 12v/24v compatible
  • IP69K external module
  • Environmental learning (100cm)
  • 3 mount options included
  • Direct Vision Standards – DVS Compliant
Read Full Description

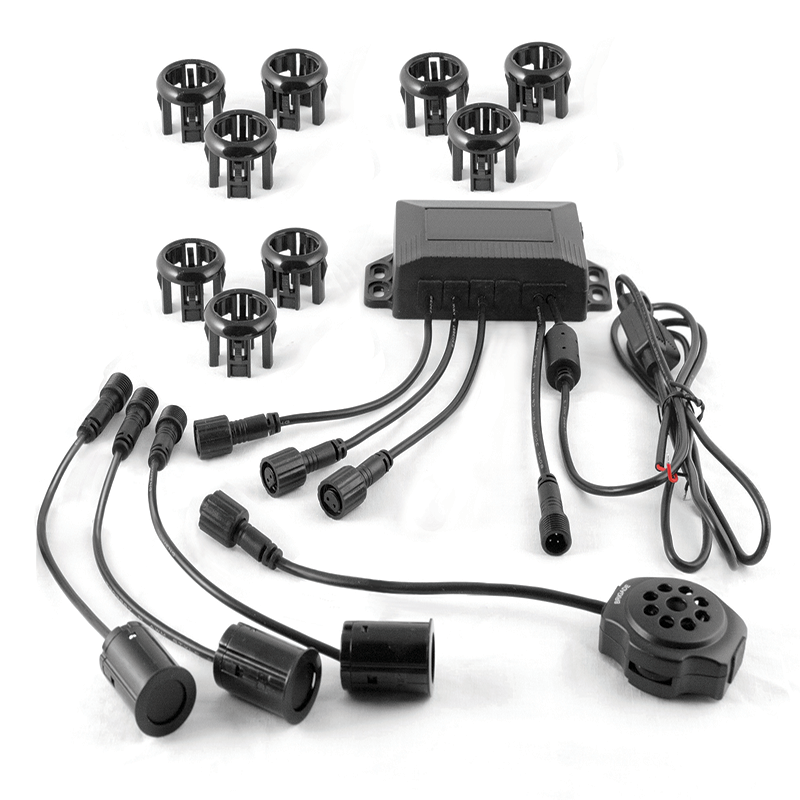

A corner mounting sensor system with an audible warning of the vehicle’s distance from an object in that quadrant. With a variety of mounting angles to adjust the standard flush sensor out up to 26° to cover all possible corner/step angles. Giving driver the reassurance that there is no one on their blindspot.

Direct Vision Standards compliant.

Number of sensors 3 flushmount
Detection Range 0 ~ 1m or 0 ~ 0.6m selectable
Operating Power 12/24v
Sensitivity 2 level selectable
Object detection 200 milliseconds
False Alarm Protection Environmental learning (up to 100cm protrusion)
Waterproof Rating Control Module: IP69K, Sensors: IP68
Alert Graduated Audible
Mounting Rings 11°, 18°, 26°
Buzzer Cable Length 2.5m
Sensor Cable Length 3 x 2.5m
Operating Temp -40°C to +80°C
Certifications CE & EMC approved: E

Optional Extras

UDS-2.5BC – 2.5m Buzzer/display extension cable
UDS-10BC – 10m Buzzer/display extension cable
UDS-15BC – 15m Buzzer/display extension cable
UDS-2.5SC – 2.5m Sensor extension cable
UDS-4.5SC – 4.5m Sensor extension cable

Product Code:  SEN-CS3000
