Call for price

Product Code: SEN-FS-4000W

• 4 x IP68 Front mount sensors
• 2 level proximity sensitivity
• Graduated audible warning
• 12v/24v compatible
• IP69K external module
• Environmental learning (100cm)
• 3 mount options included

Read Full Description

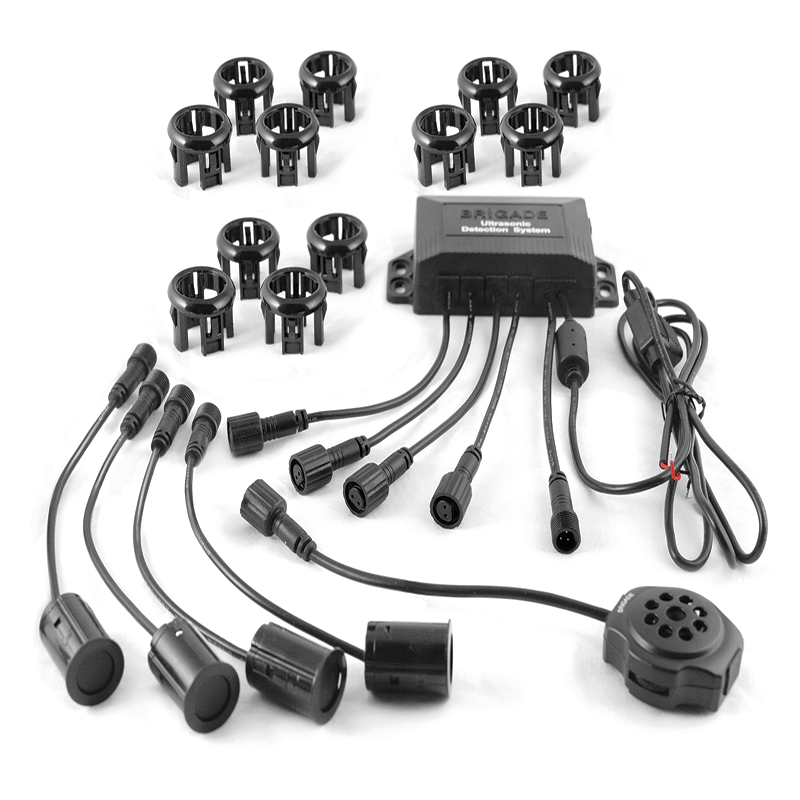

A front mounting sensor system with an audible warning of the vehicle’s distance from any object in front of it. With a variety of mounting angles to adjust the standard flush sensor out up to 26° to cover all possible bumper angles.

Number of sensors 4 flushmount
Detection Range 0 ~ 2.1m or 0 ~ 1m selectable
Operating Power 12/24v
Sensitivity 2 level selectable
Object detection 200 milliseconds
False Alarm Protection Environmental learning (up to 100cm protrusion)
Waterproof Rating Control Module: IP69K, Sensors: IP68
Alert Graduated Audible
Mounting Rings 11°, 18°, 26°
Buzzer Cable Length 2.5m
Sensor Cable Length 4 x 2.5m
Operating Temp -40°C to +80°C
Certifications CE & EMC approved: E

Optional Extras

UDS-2.5BC – 2.5m Buzzer/display extension cable
UDS-10BC – 10m Buzzer/display extension cable
UDS-15BC – 15m Buzzer/display extension cable
UDS-2.5SC – 2.5m Sensor extension cable
UDS-4.5SC – 4.5m Sensor extension cable

Product Code: SEN-FS-4000W
