Autowatch alcolock TAB

Autowatch Tab

Call for price

Product Code: SAF-ALCTAB

Key Features

  • Dash mount Interlock status LED (Driver Change Switch)
  • GSM module for remote reporting – optional
  • 12/24 Volt vehicle operation – selectable
  • Fast accurate analysis with high specificity to alcohol
  • Ergonomic design
  • Multi Language
Read Full Description

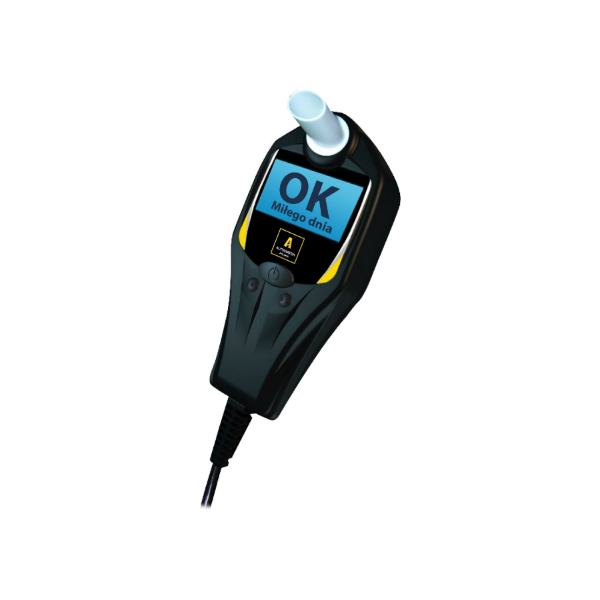

Autowatch Tab

Introducing Alcohol sensitive vehicle immobilisation – Advanced Biometric Solution

The Autowatch WAB (Wireless Alcohol Breathalyser) or TAB (Tethered Alcohol Breathalyser) systems give an advanced vehicle immobilisation solution to prevent driving while over the legal alcohol limit. This reducers the risk and exposure of Fleet Owners where accidents are extremely costly in terms of the loss or damage to the cargo, the vehicle and the loss in production while the damaged vehicle is out of service.

The driver blows into the alcohol sensor (TAB) to verify that they are under the legal limit, which will release the immobiliser allowing the vehicle to start. Drivers who are over the legal limit will be prevented from starting their vehicles by the unit remaining immobilised.

The TAB can be configured to lock out or allow multiple resets to release the immobiliser thus allowing a driver to wait until their blood alcohol level drops and blow into the sensor again. If the Re-test Feature is selected then at predefined intervals the system will require a new breath sample to be provided. This ensures that the drivers are re-tested at random while on route.

All sample information and failures are stored in a non volatile memory with date and time stamp. If a failure occurs this can be automatically communicated if the optional GSM module is connected.

The TAB has a built in temperature sensor therefore with the unit permanently fitted to the vehicle, warm up times in Winter and cooling down times in Summer are significantly reduced.

All parameters in the TAB and VBS are configurable to meet operating requirements.

Key Features

  • Dash mount Interlock status LED (Driver Change Switch)
  • Driver random testing facility – Selectable at installation
  • Vehicle restart time as per required interval – Selectable at installation
  • Driver change facility – ensuring that the new driver is tested
  • “ECCM” electronic counter circumvention measure to distinguish between mechanical simulated breath sample and human breath sample
  • Three safe and secure override facilities for unseen situations to ensure vehicle mobility
  • GSM module for remote reporting – optional
  • Configurable to integrate into a vehicle’s fleet management or tracking system or to an optional GSM Module
  • 12/24 Volt vehicle operation – selectable
  • Fully automatic and simple to use with interactive display “PASS” “FAIL” & “Please take sample”
  • Fuel Cell Technology for grater stability and accuracy
  • Fast accurate analysis with high specificity to alcohol
  • Ergonomic design
  • Individually hygienically wrapped low cost mouthpieces
  • Memory storage capacity of up to 16000 records extendable to 20000 records with date and time stamp including alcohol breath concentrate, pass and fail
  • Once off and re programmable emergency override facility
  • PIN activated supervisor menu allowing fleet managers to view and monitor user results
  • PIN activated service menu quick access to view and preset parameters
  • Data download facility to a PC or a PALM
  • Service/Valet mode selected via PIN
  • Multi Language
  • CANbus compatible
  • TAB/VBS-RF Data download (optional)

Product Code: SAF-ALCTAB
